Material:stainless steel ,brass , bronze
Size:1/4’’-4’’
Thread:NPT, BSP, DIN2999, BSPT
Working pressure1000psi , 2000psi
Temperature range-20-220℃
Medium Water, oil, gas and other medium
Type:2-way 3-way 1-way
1. One Piece Body.
2. Reduce Bore.
3. Size: 1/4"-4"(DN6-DN100)
4. Working Pressure: 1000WOG, 2000WOG
5. Threaded End: OptionalBSP, BSPT, NPT, DIN2999

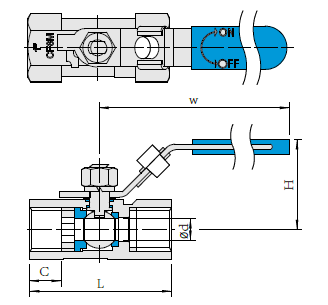

SIZE | φd | L | H | W | C | TORQUE
N.M |
END |
1/4" | 5 | 40 | 28 | 75 | 10 | 3 | BSP, BSPT,NPT, PT, DIN……. |
3/8" | 7 | 45 | 31 | 90 | 10.5 | 3 | |
1/2" | 9 | 57 | 34 | 95 | 13.5 | 3 | |
3/4" | 12 | 60 | 43 | 95 | 14 | 4.5 | |
1" | 15 | 72 | 52 | 111 | 16.5 | 5 | |
1-1/4" | 20 | 78 | 52 | 124 | 19 | 7 | |
1-1/2" | 25 | 83 | 65 | 139 | 19 | 8 | |
2" | 32 | 99 | 70 | 152 | 23.5 | 16 | |
2-1/2" | 38 | 130 | 95 | 200 | 31.5 | 21 | |
3" | 48 | 150 | 102 | 200 | 32 | 26 | |
4" | 65 | 192 | 133 | 250 | 44 | 40 |

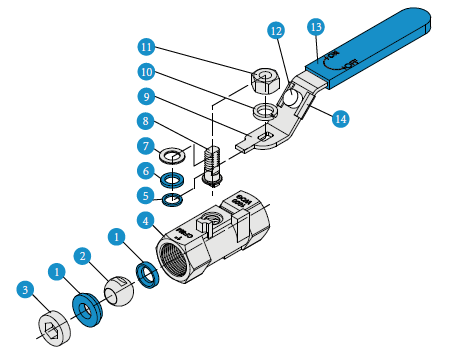

ITEM NO | PART NAME | MATERIAL | ||||
1 | Ball Seat | PTFE | R-PTFE | |||
2 | Ball | SS316 | SS304 | |||
3 | End Plug | CF8M | CF8 | |||
4 | Body | CF8M | CF8 | WCB | ||
5 | Thrust Washer | PTFE | ||||
6 | Stem Packing | PTFE | ||||
7 | Washer | SS304 | ||||
8 | Stem | SS316 | SS304 | |||
9 | Handle | SS304 | ||||
10 | Spring Washer | SS304 | ||||
11 | Stem Nut | SS304 | ||||
12 | Locking Pin | PLASTIC | ||||
13 | Handle Cover | PLASTIC | ||||
14 | Locking Device | SS304 |
