API Cast Steel Check Valve

Short Description:

1.Standard:API598,DIN3356,BS7350,EN12266-1
2.Size : DN15~DN600mm (1/2″-24″)
3.Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
4.Suitable Mediums:water , oil , gas,steam
5.Type:wafer ,swing
6.Pressure:class150,class300,class600,class900


Product Detail

Product Tags

Applicable Standards

Design and Manufacture: ANSI B16.34, API 6D(full bore), BS1868(reduced bore)
Face to face(end to end): ANSI B16.10, API 6D
Flanged connection: 2"~24" to ANSI B16.5, 22",26"~36" to MSS-SP-44 to API 605 on Request
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D

API Cast Steel Check Valve

Materials list

NO.

Part Name

Material

12

Disc Nut

Carbon steel/stainless steel

11

Washer

Carbon steel/stainless steel

10

Hinge Pin

Carbon steel/stainless steel

9

Seat Ring

CS+SS/SS/SS+STL(see body materials)

8

Disc

CS+SS/SS/SS+STL(see body materials)



NO.

Part Name

WCB

LCB

WC6

WC9

7

Bolt Stud & Nut

A193 Gr B7/A194 Gr 2H

A320 Gr L7/A194 Gr 4

A193 Gr B16/A194 Gr 4/7

A193 Gr B16/A194 Gr 4/7

6

Cover Bolt & Nut

A193 Gr B7/A194 Gr 2H

A320 Gr L7/A194 Gr 4

A193 Gr B16/A194 Gr 4/7

A193 Gr B16/A194 Gr 4/7

5

Gasket

Spiral wound/soft iron

Spiral wound/soft iron

spiral wound/SS304

spiral wound/SS304

4

Hinge Yoke

A216 Gr WCB

A352 Gr LCB

A217 Gr WC6

A217 Gr WC9

3

Hinge

A216 Gr WCB

A352 Gr LCB

A217 Gr WC6

A217 Gr WC9

2

Cover

A216 Gr WCB

A352 Gr LCB

A217 Gr WC6

A217 Gr WC9

1

Body

A216 Gr WCB

A352 Gr LCB

A217 Gr WC6

A217 Gr WC9



NO.

Part Name

C5

C12

CF8

CF8M

7

Bracket Stud&Nut

A193 Gr B16/A194 Gr 4

A193 Gr B16/A194 Gr 4/7

A193 Gr B8/A194 Gr 8

A193 Gr B8M/A194 Gr 8M

6

Cover Bolt&Nut

A193 Gr B16/A194 Gr 4

A193 Gr B17/A194 Gr 4/7

A193 Gr B8/A194 Gr 8

A193 Gr B8M/A194 Gr 8M

5

Gasket

Spiral wound/soft iron

Spiral wound/SS304

spiral wound/SS304

spiral wound/SS316

4

Hinge Yoke

A217 Gr C5

A217 Gr C12

A351 Gr CF8

A351 Gr CF8M

3

Hinge

A217 Gr C5

A217 Gr C12

A351 Gr CF8

A351 Gr CF8M

2

Cover

A217 Gr C5

A217 Gr C12

A351 Gr CF8

A351 Gr CF8M

1

Body

A217 Gr C5

A217 Gr C12

A351 Gr CF8

A351 Gr CF8M

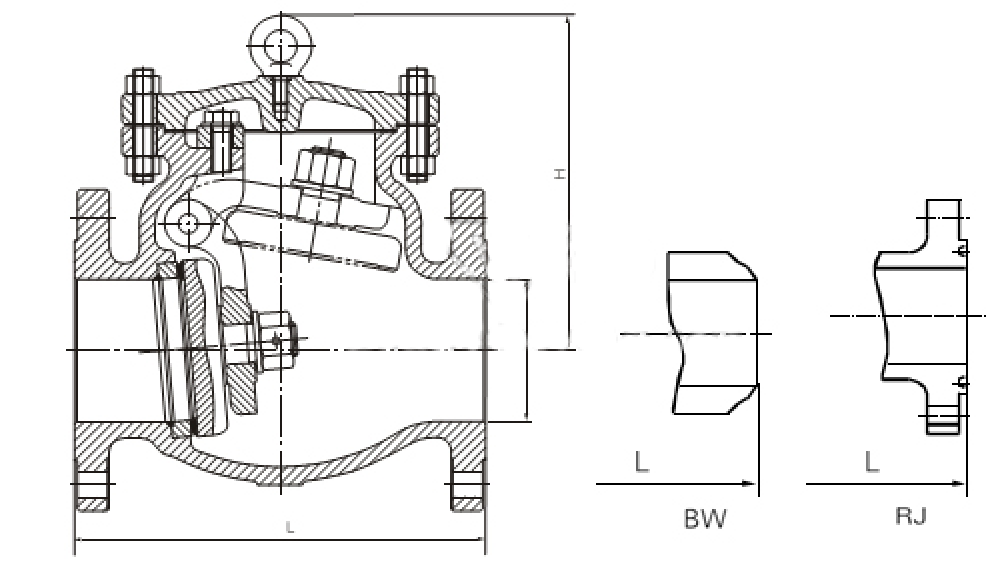

Dimensions (mm) and weight for ANSI Class 150

Size

inch

2

2002-1-2

3

4

5

6

8

10

12

14

16

18

20

24

L-RF.BW

mm

203

216

214

292

330

356

495

622

699

787

864

978

978

1295

L-RTJ

mm

216

229

254

305

343

368

508

635

717

800

876

991

991

1308

H

mm

155

190

200

225

245

260

350

390

410

435

530

570

625

675

Weight

KG

16

25

34

46

75

89

120

220

337

471

575

788

916

1275



Dimensions (mm) and weight for ANSI Class 300

Size

inch

2

2002-1-2

3

4

5

6

8

10

12

14

16

18

20

24

L-RF.BW

mm

267

292

318

355

400

440

533

622

711

838

863

977

1016

1346

L-RTJ

mm

283

308

333

371

416

460

549

638

727

854

879

994

1036

1368

H

mm

180

200

225

240

275

310

370

410

440

500

545

605

675

785

Weight

KG

26

32

53

73

110

157

234

384

450

650

800

970

1350

2210



Dimensions (mm) and weight for ANSI Class 600

Size

inch

2

2002-1-2

3

4

5

6

8

10

12

14

16

18

20

L-RF.BW

mm

292

330

356

432

508

559

660

787

838

889

991

1092

1194

L-RTJ

mm

295

333

359

435

511

562

664

791

841

892

994

1095

1200

H

mm

190

215

250

260

310

350

420

490

525

580

630

690

810

Weight

KG

33

49

62

95

120

195

360

465

725

875

1075

1475

1900



Dimensions (mm) and weight for ANSI Class 900

Size

inch

2

2002-1-2

3

4

5

6

8

10

12

14

L-RF.BW

mm

368

419

381

457

559

610

737

838

965

1029

L-RTJ

mm

371

422

384

460

562

613

740

841

968

1038

H

mm

195

235

260

275

320

370

435

520

530

580

Weight

KG

55

70

90

135

165

295

525

900

1075

1225
