AWWA C509AWWA C515 Cast iron Gate Valve
AWWA C509/AWWA C515 Cast iron Gate Valve
1. Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150,SABS 664
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2" - 24"
4. Material: CI, DI, STAINLESS STAIN,BRASS,BRONZE
5.pressure:CLASS 125-300/PN10-25/200-300PSI
6.Driving mode: hand wheel, bevel gear, gear
TECHNICAL REQUIREMENT
● Design and ManufactureConform to BS5163
● Inspection &Test API598
● End Standard ASME B 16.5 150LB
● Face To Face AWWA C509/C515/BS5163/ASME B16.10/ISO5752
● Driving mode: hand wheel, square cover

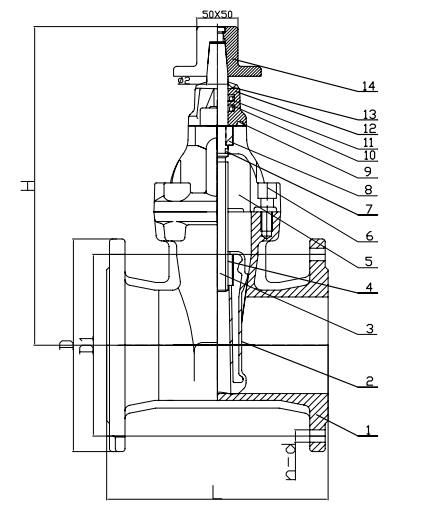

Specification
|
No. |
Part Name |
Material |
|
|
1 |
Body |
EN-GJS-500-7 |
|
|
2 |
Rubber Disc |
EPDM/NBR+DI. |
|
|
3 |
Stem |
SS410 |
|
|
4 |
Nut |
BRONZE |
|
|
5 |
Up Body |
EN-GJS-500-7 |
|
|
6 |
Blot |
Q235A |
|
|
7 |
Seat |
EPDM/NBR |
|
|
8 |
Thrust Bearing |
BRONZE |
|
|
9 |
O-Ring |
NBR |
|
|
10 |
V-Ring |
NBR |
|
|
11 |
V-Ring |
NBR |
|
|
12 |
Bonnet |
EN-GJS-500-7 |
|
|
13 |
Dust Shield |
NBR |
|
|
14 |
Cap |
EN-GJS-500-7 |
Dimensions data(mm)
|
DN |
L |
Φ2 |
D |
D1 |
n-d |
D0 |
H |
Kg |
|
50 |
178 |
18 |
150 |
120.7 |
4-19 |
160 |
220 |
10.5 |
|
65 |
190 |
18 |
180 |
139.7 |
4-19 |
180 |
235 |
12.5 |
|
80 |
203 |
22 |
190 |
152.4 |
4-19 |
200 |
280 |
16 |
|
100 |
229 |
22 |
230 |
190.5 |
8-19 |
200 |
320 |
21 |
|
125 |
254 |
26 |
255 |
215.9 |
8-22 |
250 |
360 |
29 |
|
150 |
267 |
26 |
280 |
241.3 |
8-22 |
250 |
400 |
35 |
|
200 |
292 |
28 |
345 |
298.5 |
8-22 |
320 |
510 |
57 |
|
250 |
330 |
32 |
405 |
362 |
12-26 |
350 |
600 |
92 |
|
300 |
356 |
32 |
485 |
431.8 |
12-26 |
350 |
675 |
129 |
|
350 |
381 |
33.5 |
535 |
476.3 |
12-29 |
460 |
820 |
180 |
|
400 |
406 |
38.5 |
595 |
539.8 |
16-26 |
460 |
890 |
240 |
|
450 |
432 |
43.5 |
635 |
577.9 |
16-32 |
530 |
1080 |
320 |
|
500 |
457 |
48.5 |
700 |
635 |
20-32 |
530 |
1220 |
470 |
|
600 |
508 |
58 |
815 |
749.3 |
20-35 |
625 |
1340 |
640 |
