Ball Check Valve

Short Description:

1.size:DN50-DN600;2’’-24’’
2.Medium:water
3.Standard:EN12334/BS5153/MSS SP-71/AWWA C508
4.Pressure:CLASS 125-300/PN10-25/200-300PSI
5.Material:CI,DI
6.Type:wafer,swing


Product Detail

Product Tags

TECHNICAL REQUIREMENT

1. Working pressure: 1.0/1.6MPa
2. Working temperature:
NBR: 0℃~80℃
EPDM: -10℃~120℃
3. Face to face: DIN3202 F6
4. Flange standard: EN1092-2, ANSI125/150
5. Testing: DIN3230, API598
6. Medium: Fresh water, sea water, food, all kinds of oil etc.

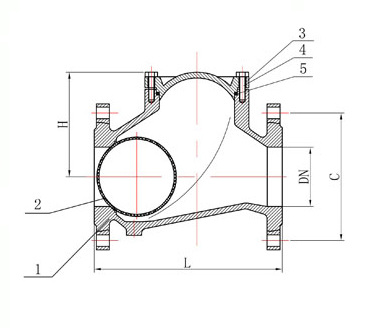

Specification

NO.

PART

MATERIAL

product



1

Body

GG25/GGG40

2

Ball

Metal+NBR/EPDM

3

Cap

GG25/GGG40

4

Bolt

Stainless steel

5

Gasket

NBR/EPDM

Dimensions data(mm)

DN (mm)

40

50

65

80

100

125

150

200

250

300

350

400

ΦE (mm)

180

200

240

260

300

350

400

500

600

700

800

900

L (mm)

98

106

129

146

194

207

240

322

388

458

610

705

ΦD (mm)

PN10

Φ110

Φ125

Φ145

Φ160

Φ180

Φ210

Φ240

Φ295

Φ350

Φ400

Φ460

Φ515



PN16



Φ355

Φ410

Φ470

Φ525
