BS5163 Resilient Seated Non-Rising Stem Cast iron Gate Valve

Short Description:

1. Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150,SABS 664
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2″ – 24″
4. Material: CI, DI,STAINLESS STAIN,BRASS,BRONZE
5.pressure:CLASS 125-300/PN10-25/200-300PSI,PN10,PN16,PN25
6.Driving mode: hand wheel, bevel gear, gear.


Product Detail

Product Tags

TECHNICAL REQUIREMENT

● Design and Manufacture  Conform to BS5163
● Flange dimensions  Conform to EN1092-2 PN10,PN16,PN25
● Face to Face  dimensions Conform to  BS5163
● Testing Conform to  BS5163、EN12266-1
● Driving mode: hand wheel, square cover
The installation and maintenance of gate valve shall pay attention to the following matters:
The hand wheel, handle and transmission mechanism are not allowed to be used for lifting, and collision is strictly prohibited.
Double gate valves shall be installed vertically (i.e. the valve stem is in the vertical position and the handwheel is at the top).
The gate valve with bypass valve shall open the bypass valve before opening (to balance the pressure difference at the inlet and outlet and reduce the opening force).
The gate valve with transmission mechanism shall be installed according to the provisions of the product operation manual.
If the valve is often opened and closed, lubricate it at least once a month.
According to the driving mode of the valve, it is divided into electric gate valve, pneumatic gate valve and manual gate valve

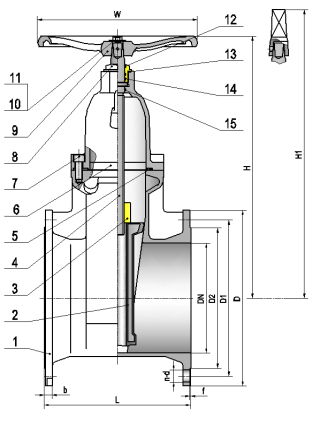

Specification

No.

Part Name

Material

BS5163 Resilient Seated Cast iron Gate Valve

1

Body

EN-GJS-500-7

2

Rubber Disc

EPDM/NBR+DI.

3

Stem Nut

ZCuAl10Fe3

4

Stem

1Cr17Ni2

5

Bonnet Gasket

EPDM/NBR

6

Bonnet

EN-GJS-500-7

7

Socket Cap Screw

Carbon Steel

8

Seal Block

ZCuZn40Mn3Fe1

9

Hand wheel

EN-GJS-500-7

10

Nut

Zinc-plated Carbon Steel

11

Washer

Zinc-plated Carbon Steel

12

Dustproof Seal Ring

EPDM/NBR

13

O-ring

EPDM/NBR

14

O-ring

EPDM/NBR

15

O-ring

EPDM/NBR

Dimensions data(mm)

DN

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L

177.8

190

203.2

228.6

254

266.7

292.1

330.2

355.6

381

406

432

457

508

D

165

185

200

220

250

285

340

405

460

520

580

640

715

840

D1

125

145

160

180

210

240

295

355

410

470

525

585

650

770

D2

99

118

132

156

184

211

266

319

370

429

480

548

609

720

b

19

19

19

19

19

19

20

22

24.5

26.5

28

30

31.5

36

n-d

4-19

4-19

8-19

8-19

8-19

8-23

12-23

12-28

12-28

16-28

16-31

20-31

20-34

20-37

f

3

3

3

3

3

3

3

3

4

4

4

4

4

5

H

226

265

288

320

364

410

502

596

681

810

905

1008

1135

1310

H1

291

326

352

383

427

473

564

657

742

885

980

1083

1210

1385

W

200

200

200

255

255

306

306

360

360

406

406

508

508

508
