DIN3202 Cast Steel Gate Valve

Short Description:

1.Design and Manufacture:DIN3352 or DIN EN12288
2.Face to Face:DIN3202 or DIN EN558
3.Pressure: PN16-PN40
4.Size:DN50~DN600;1/2’’-24’’
5.Material:WCB,Bronze,Brass,Stainless steel
6.Type: Rising Stem, BB, FB, OS&Y
7.Operating temperature :-196℃~600℃
8.Medium: water oil gas and so on
9.Operation: Hand Wheel. Gear Devices, Electric, Etc
10. Flanged End: DIN2543-2546 or DIN EN1092
11.Test&Inspection: DIN3230 or din en12266


Product Detail

Product Tags

Gate valve refers to the valve whose closing part (gate) moves along the vertical direction of the center line of the channel. Gate valve is mainly used for cutting in the pipeline. Forged steel gate valve is a widely used valve. It is generally used for cutting devices with a diameter of DN ≥ 50mm, and sometimes gate valve is also used for cutting devices with a small diameter. Gate valve, as a low-level valve, is more common.
Gate valve features:
Good sealing performance, small fluid resistance and certain regulation performance; However, it has large size, complex structure, difficult processing, easy wear of sealing surface, difficult maintenance and long opening and closing time. It is suitable for making large-diameter valves. In addition to steam, oil and other media, it is also suitable for media containing granular solids and high viscosity, as well as valves for venting and low vacuum systems.

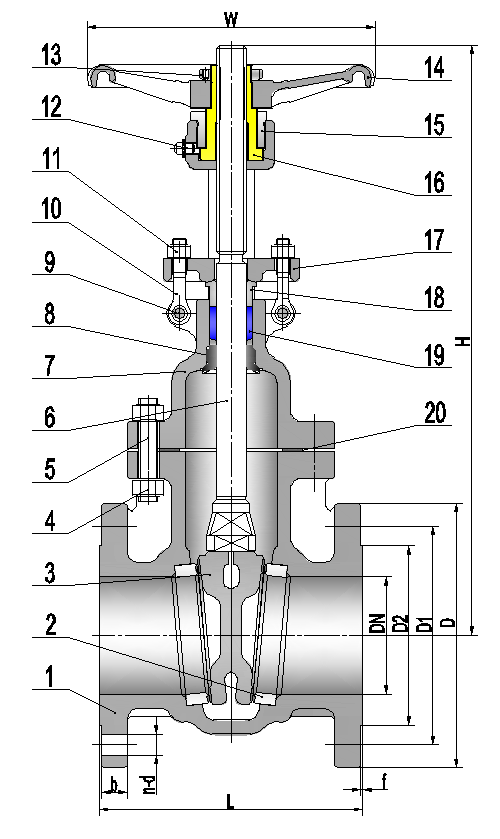

Specification

NO.

PART

ASTM Material

 API600 OS&Y Cast Steel Gate Valve (2)

WCB

LCB

WC6

CF8(M)

CF3(M)

1

BODY

A216 WCB

A352 LCB

A217 WC6

A351 CF8(M)

A351 CF3(M)

2

GATE

A216 WCB+13Cr

A352 LCB+13Cr

A217 WC6+STL

A351 CF8(M)

A351 CF3(M)

3

SEAT

A105+13Cr

A105+13Cr

A217 WC6+STL

A351 CF8(M)+STL6

A351 CF3(M)+STL6

4

STEM

A182 F6

A182 F6

A182 F6

A182 F304/F316

A182 F304L/F316L

5

BONNET BOLT

A193 B7

A320 L7

A193 B16

A193 B8(M)

A193 B8(M)

6

BONNET NUT

A194 2H

A194 7

A194 4

A194 8(M)

A194 8(M)

7

GASKET

SS304+GRAPHITE

PTFE/SS304+GRAPHITE

PTFE/SS316+GRAPHITE

8

BONNET

A216 WCB

A352 LCB

A217 WC6

A351 CF8(M)

A351 CF3(M)

9

BACKSEAT

A182 F6

A182 F6

A182 F6

-

-

10

PACKING

FLEXIBLE GRAPHITE

PTFE/FLEXIBLE GRAPHITE

11

GLAND

A182 F6

A182 F6

A182 F6

A182 F304

A182 F304L/F316L

12

GLAND FLANGE

A216 WCB

A352 LCB

A217 WC6

A351 CF8(M)

A351 CF3(M)

13

GLAND EYEBOLT

A193 B7

A193 B8

A193 B8

14

NUT

A194 2H

A194 8

A194 8

15

PIN

AISI 1025

AISI 1025

16

STEM NUT

BRONZE

BRONZE

17

HANDWHEEL NUT

AISI 1035

AISI 1035

18

SCREW

ASTM A36

ASTM A36

19

HANDWHEEL

A536 60-40-18

A536 60-40-18

20

BEARING GLAND

AISI 1035

AISI 1035

21

GREASE NIPPLE

BRASS

BRASS

22

NAMEPLATE

SS304

SS304

Dimensions data(mm)

NPS

2

3

4

5

6

8

10

12

14

16

18

20

24

L

250

270

280

300

325

350

400

450

500

550

600

650

700

800

D

165

185

200

235

270

300

360

425

485

555

620

670

730

745

b

20

22

24

24

26

28

30

32

34

38

40

46

48

58

n-d

4-20

8-22

8-24

8-24

8-26

8-28

12-30

12-32

16-34

16-38

16-40

20-46

20-48

20-58
