Grooved Butterfly Valve
Grooved Butterfly Valve
1.Size:2.5’’-12’’
2.Standard:API598
3.Pressure:200-300PSI
4.Material:CI,DI
5.Type:wafer type,groove type
Description
TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to API609
● Top flange conform to ISO5211
● Grooved Ends Conform to AWWA C606 or Metric Dimensions
● Testing Conform to API598
Specification
|
NO. |
Part Name |
Material |
|
|
1 |
Upper Shaft Sealing Nut |
Carben Steel |
|
|
2 |
Shaft Seal |
EPDM |
|
|
3 |
Body |
ASTM A536 65-45-12 | |
|
4 |
Upper Shaft |
ANSI 416 |
|
|
5 |
Disc |
ASTM A536 65-45-12+EPDM |
|
|
6 |
Lower Shaft |
ANSI 416 |
|
|
7 |
Lower Shaft Sealing Nut |
Carben Steel |
|
|
8 |
Signal Gearbox |
ASTM A536 65-45-12 |

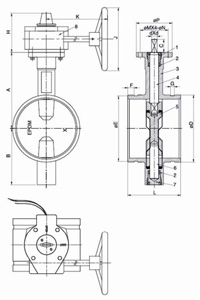

Dimensions data(mm)
|
Size |
A |
B |
C |
D |
H |
K |
J |
P |
M |
N |
d |
L |
|
2-1/2" |
125 |
95 |
32 |
112 |
111 |
218 |
152 |
90 |
70 |
9 |
10 |
44.2 |
|
3" |
140 |
100 |
32 |
120 |
111 |
218 |
152 |
90 |
70 |
9 |
11 |
45.3 |
|
4" |
160 |
100 |
32 |
165 |
111 |
218 |
152 |
90 |
70 |
9 |
14 |
52 |
|
5" |
170 |
125 |
32 |
182 |
111 |
218 |
152 |
90 |
70 |
9 |
14 |
54.4 |
|
6" |
190 |
140 |
32 |
216 |
111 |
218 |
200 |
90 |
70 |
9 |
16 |
55.8 |
|
8" |
230 |
175 |
32 |
260 |
126 |
232 |
300 |
125 |
102 |
12 |
19 |
60.5 |
|
10" |
260 |
200 |
45 |
320 |
126 |
232 |
300 |
125 |
102 |
12 |
22 |
66.5 |
|
12" |
300 |
240 |
45 |
375 |
161 |
252 |
350 |
150 |
125 |
14 |
24 |
76.9 |
