Size: | 1/8"-4"(6mm-100mm) |
Specification: | Dim. Spec: ANSI B16.11 , MSS SP-79 |
Material Spec: | ASTM A105 , Stainless Steel304, SS304L, SS316, SS316L |
Size of raw material: | DIA. 19-85MM Round Bar |
Type: | Elbow, Cross, Street Elbow, Tee, Boss, Coupling, Half Coupling, Cap,Plug, Bushing, Union, Swage Nipple, Bull Plug, Reduced Insert, Pipe Nipple etc. |
Connection Type: | Socket-Weld and Threaded (NPT, BSP) |
Rating: | 2000LBS, 3000LBS, 6000LBS, 9000LBS. |
Marking: | 1.Carbon and alloy steel: marked by stamping.2.Stainless:Marked by electro-etched or jet printed or stamped
3.3/8" under: brand only 4.1/2" to 4": marked brand. material. heat no. b16 (blong to ANSI B16. 11 product),pressure and size. |
Paking: | Carton/ Plywood cases |

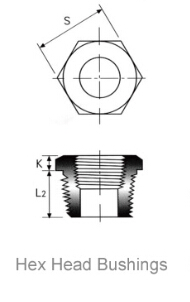

Nominal Pipe Size | Length | Square Head Plugs | Round Head Plugs | Hex Plugs and Bushings | |||||
Height of Square | Width Flats | Nominal Diameter of Head | Length | Width Flats (Nominal) | Hex Height | ||||
DN | NPS | L2 min | B min | C min | D | L min | S | K min | H min |
6 | 1/8 | 10 | 6 | 7 | 10 | 35 | 11 | 6.0 | |
8 | 1/4 | 11 | 6 | 10 | 14 | 41.0 | 16 | 3.0 | 6.0 |
10 | 3/8 | 13 | 8 | 11 | 18 | 41.0 | 18 | 4.0 | 8.0 |
15 | 1/2 | 14 | 10 | 14 | 21 | 44.0 | 22 | 5.0 | 8.0 |
20 | 3/4 | 16 | 11 | 16 | 27 | 44.0 | 27 | 5.0 | 10.0 |
25 | 1 | 19 | 13 | 21 | 33 | 51.0 | 36 | 6.0 | 10.0 |
32 | 1 1/4 | 21 | 14 | 24 | 43 | 51.0 | 46 | 7.0 | 14.0 |
40 | 1 1/2 | 21 | 16 | 28 | 48 | 51.0 | 50 | 8.0 | 16.0 |
50 | 2 | 22 | 17 | 32 | 60 | 64.0 | 65 | 9.0 | 18.0 |
65 | 2 1/2 | 27 | 19 | 36 | 73 | 70.0 | 75 | 10.0 | 19.0 |
80 | 3 | 28 | 21 | 41 | 89.0 | 70.0 | 90 | 10.0 | 21.0 |
100 | 4 | 32 | 25 | 65 | 114 | 76.0 | 115 | 13.0 | 25.0 |
