Hydraulic Compression Type Tension Clamp NY Series
Hydraulic Compression Type Tension Clamp NY Series
|
Item |
Conductor(mm2) |

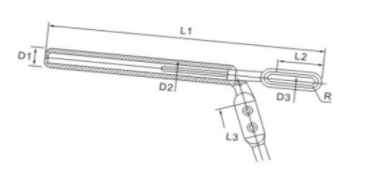

Dimensions(mm) |
(KN) |
(kg) |
||||||
|
|
|
D1 |
D2 |
D3 |
L1 |
L2 |
R |
L3 |
|
|
|
NY-240/30.1 |
LGJ-240/30 |
36 |
16 |
18 |
490 |
65 |
10 |
240 |
72 |
2.9 |
|
NY-240/40.1 |
LGJ-240/40 |
36 |
16 |
18 |
490 |
65 |
10 |
240 |
79 |
3.1 |
|
NY-240/55.1 |
LGJ-240/55 |
36 |
20 |
18 |
520 |
65 |
11 |
250 |
97 |
3.2 |
|
NY-300/15.1 |
LGJ-300/15 |
40 |
14 |
16 |
481 |
61 |
11 |
265 |
65 |
3.6 |
|
NY-300/20.1 |
LGJ-300/20 |
40 |
14 |
18 |
497 |
67 |
11 |
265 |
72 |
3.6 |
|
NY-300/25.1 |
LGJ-300/25 |
40 |
14 |
18 |
502 |
67 |
11 |
265 |
79 |
3.5 |
|
NY-300/40.1 |
LGJ-300/40 |
40 |
16 |
18 |
522 |
67 |
11 |
265 |
88 |
3.5 |
|
NY-300/50.1 |
LGJ-300/50 |
40 |
18 |
18 |
542 |
77 |
12 |
265 |
98 |
3.9 |
|
NY-300/70.1 |
LGJ-300/70 |
42 |
22 |
20 |
577 |
82 |
12 |
265 |
122 |
4.5 |
|
NY-400/20.1 |
LGJ-400/20 |
45 |
14 |
18 |
528 |
68 |
13 |
280 |
84 |
4.3 |
|
NY-400/25.1 |
LGJ-400/25 |
45 |
14 |
18 |
538 |
68 |
13 |
280 |
91 |
4.3 |
|
NY-400/40.1 |
LGJ-400/35 |
45 |
16 |
20 |
563 |
78 |
13 |
280 |
99 |
4.6 |
|
NY-400/50.1 |
LGJ-400/50 |
45 |
20 |
20 |
573 |
78 |
13 |
280 |
117 |
4.7 |
|
NY-400/65.1 |
LGJ-400/65 |
48 |
22 |
22 |
598 |
83 |
13 |
280 |
123 |
5.4 |
|
NY-400/95.1 |
LGJ-400/95 |
48 |
26 |
26 |
650 |
95 |
15 |
280 |
163 |
7.1 |
