Precast Lifting System Lifting Insert
Double Head Anchor

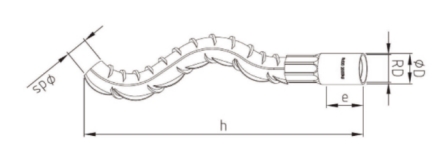

| Product Code | Thread Dia. | Length | Bar Dia. | Safe Working |
| Rd | (mm) | (mm) | Load (Kg) | |
| TGL-12137 | 12 | 137 | 8 | 500 |
| TGL-16216 | 16 | 216 | 12 | 1200 |
| TGL-20257 | 20 | 257 | 16 | 2000 |
| TGL-24360 | 24 | 360 | 16 | 2500 |
| TGL-30450 | 30 | 450 | 20 | 4000 |
| TGL-36570 | 36 | 570 | 25 | 6300 |
| TGL-42620 | 42 | 620 | 28 | 8000 |
| TGL-52880 | 52 | 880 | 32 | 12500 |
|
Long wavy tailed lifting sockets have an integral reinforcement tail attached, making them ideal for large thin precast panels of medium to high weight. |
||||
