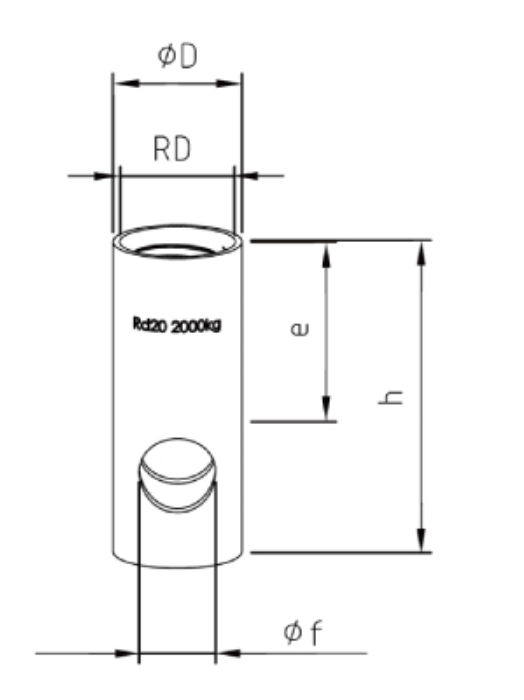

Precast Lifting System Lifting Socket
Double Head Anchor
| Product Code | Thread Dia. | Length | Safe Working | |
| (Rd) | (M) | (mm) | Load (Kg) | |
| HSB-1240 | 12 | 12 | 40 | 500 |
| HSB-1655 | 16 | 16 | 54 | 1200 |
| HSB-2067 | 20 | 20 | 69 | 2000 |
| HSB-2477 | 24 | 24 | 78 | 2500 |
| HSB-30105 | 30 | 30 | 103 | 4000 |
| HSB-36125 | 36 | 36 | 125 | 6300 |
| HSB-42145 | 42 | 42 | 145 | 8000 |
| HSB-52195 | 52 | 52 | 195 | 12500 |
|
Also available in Stainless steel. |
||||
|
Always use with reinforcement. |
||||
|
Lifting Socket HSB are designed to aid the transportation of precast concrete units. |
||||
