MSS SP-70 Metal-Seal Cast iron Gate Valve

Short Description:

1. Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2″ – 24″
4. Material:CI,DI,STAINLESS STAIN,BRASS,BRONZE
5.pressure:CLASS 125-300/PN10-25/200-300PSI
6.Driving mode:handwheel,bevel gear,gear


Product Detail

Product Tags

TECHNICAL REQUIREMENT

● Design and Manufacture  Conform to MSS SP-70
● Flange dimensions  Conform to ANSI B16.1
● Face to Face  dimensions Conform to  ANSI B16.10
● Testing Conform to  MSS SP-70
● Driving mode: hand wheel, bevel gear, gear, electric

Gate valve standard
AP I600 / ISO 10434: bolted steel gate valves for petroleum and natural gas
BS 1414: steel gate valves for petroleum, petrochemical and refining industries
API 603: 150Lb corrosion resistant flange end cast gate valve
GB / T 12234: flanged and butt welded steel gate valves
Din 3352: gate valves
Shell SPE 77 / 103: steel gate valve as per iso10434

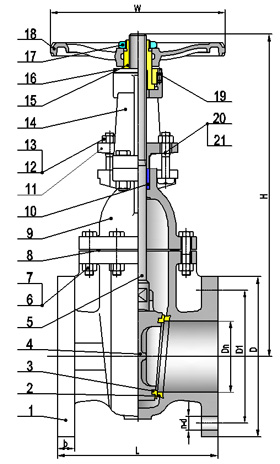

Specification

No.

Part Name

Material

product

1

BODY

ASTM A126 B

2

SEAT RING

ASTM B62

3

WEDGE RING

ASTM B62

4

WEDGE

ASTM A126 B

5

STEM

ASTM B16 H02/2Cr13

6

STEM NUT

Mn-BRASS

7

BOLT

CARBON STEEL

8

NUT

CARBON STEEL

9

BONNET GASKET

GRAPHITE+STEEL

10

BONNET

ASTM A126 B

11

STUFFING BOX

ASTM A126 B

12

BOLT

CARBON STEEL

13

NUT

CARBON STEEL

14

PACKING GLAND

ASTM A126 B

15

HANDWHEEL

DUCTILE IRON

16

NUT

CARBON STEEL

17

WASHER

CARBON STEEL

18

PACKING

GRAPHITE

19

WASHER

GRAPHITE+STEEL

20

BOLT

CARBON STEEL

21

NUT

CARBON STEEL

Dimensions data(mm)

NPS

2

3

4

5

6

8

10

12

14

16

18

20

24

30

36

42

48

Dn

51

63.5

76

102

127

152

203

254

305

356

406

457

508

610

762

914

1067

1219

L

177.8

190.5

203.2

228.6

254

266.7

292.1

330.2

355.6

381

406

432

457

508

610

711

813

1015

D

152

178

191

229

254

279

343

406

483

533

597

635

699

813

984

1168

1346

1511

D1

120.7

139.7

152.4

190.5

215.9

241.3

298.5

362

431.8

476.3

539.8

577.9

635

749.3

914.4

1086

1257

1422

b

15.8

17.5

19

23.9

23.9

25.4

28.5

30.2

31.8

35

36.6

39.7

42.9

47.7

53.9

60

67

70

n-d

4-19

4-19

4-19

8-19

8-22

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

28-35

32-41

36-41

44-41

H

312

325

346

410

485

520

625

733

881

1002

1126

1210

1335

1535

2140

2365

2770

3050

W

200

200

200

255

306

306

360

406

406

508

558

610

640

640

700

800

900

900
