PD Clevis Easy Structure
PD Clevis Easy Structure
|
Cat.No. |
Dimension(mm) |
Failure Load(KN) |
Weight(kg) |

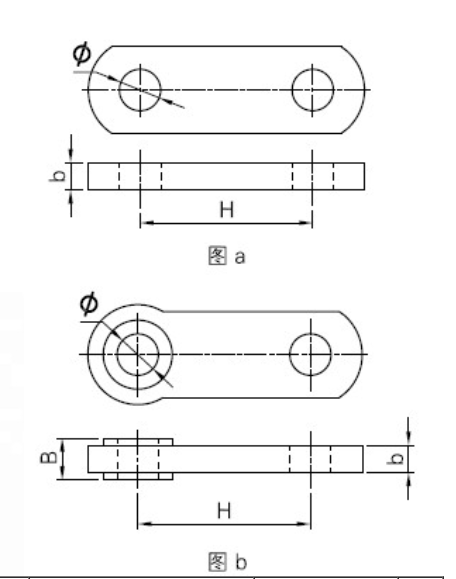

Fig |
|||
|
b |
L |
Φ |
B |
||||
|
PD-7 |
16 |
80 |
18 |
- |
70 |
0.57 |
a |
|
PD-10 |
16 |
80 |
20 |
- |
100 |
0.7 |
|
|
PD-12 |
16 |
100 |
24 |
- |
120 |
0.9 |
|
|
PD-16 |
18 |
130 |
26 |
- |
160 |
1.4 |
|
|
PD-2109 |
26 |
95 |
30 |
- |
210 |
2.07 |
|
|
PD-3018 |
32 |
180 |
39 |
- |
300 |
5.9 |
|
|
PD-5020 |
38 |
200 |
45 |
- |
500 |
8.9 |
|
|
PD-60 |
42 |
160 |
51 |
600 |
9.8 |
||
|
PD-0770 |
16 |
80 |
18 |
- |
70 |
0.57 |
|
|
PD-1080 |
16 |
80 |
20 |
- |
100 |
0.7 |
|
|
PD-12100 |
16 |
100 |
24 |
- |
120 |
0.9 |
|
|
PD-16130 |
18 |
130 |
26 |
- |
160 |
1.4 |
|
|
PD-0785-24 |
16 |
85 |
18 |
24 |
70 |
0.8 |
b |
|
PD-0785-28 |
16 |
85 |
18 |
28 |
70 |
0.9 |
|
|
PD-0785-12 |
16 |
85 |
18 |
32 |
70 |
1 |
|
Note:hot-dip galvanized steel.
