PVC Socket Ends Gate Valve

Short Description:

1. Valve design according to DIN 3352 / SABS 664 2. Face to face dimensions according to DIN 3202 F5/ SABS 664 3. Socket Ends dimensions comply ISO 4422、ISO 4422.2 4. Hydraulic test according to ISO5208


Product Detail

Product Tags

PVC Socket Ends Gate Valve

1. Valve design according to DIN 3352 / SABS 664
2. Face to face dimensions according to DIN 3202 F5/ SABS 664
3. Socket Ends dimensions comply ISO 4422、ISO 4422.2
4. Hydraulic test according to ISO5208

DESCRIPTION

TECHNICAL REQUIREMENT :
Outside stem and yoke (OS&Y)
Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick
Working pressure 250 PSI/17.2 Bar Non-Shock Cold

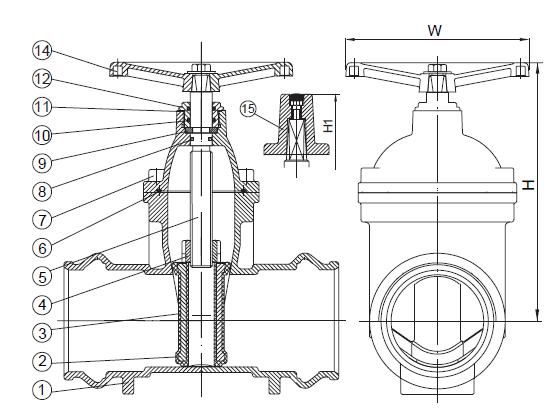

SPECIFICATION

No.

Part Name

Material

 PVC Socket Ends Gate Valve (2)

1

Body

EN- GJS- 500- 7

2

Wedge

EN- GJS- 500- 7

3

Wedge Coating

NBR /EPDM

4

Wedge Nut

Copper Alloy

5

Stem

Stainless Steel X20 Cr13

6

Bonnet Gasket

NBR /EPDM EN

7

Bonnet

EN- GJS- 500- 7

8

O Ring Back Sealing

EPDM/NBR

9

Stem Collar

Stainless Steel / Copper Alloy

10

O-Ring

EPDM/NBR

11

O-Ring

EPDM/NBR

12

Stuffing Nut

Copper Alloy

13

Dust Guard

EPDM/NBR

14

Hand Wheel

EN- GJS- 500- 7

15

Stem Cap

EN- GJS- 500- 7
