SABS 664 Ductile iron Gate Valve
SABS 664 Ductile iron Gate Valve
1. Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150,SABS 664
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2" - 24"
4. Material:CI,DI,STAINLESS STAIN,BRASS,BRONZE
5. Pressure:CLASS 125-300/PN10-25/200-300PSI
6. Driving mode:handwheel,bevel gear,gear
DESCRIPTION
TECHNICAL REQUIREMENT :
Face to face is according to SABS 664
Flange drilled is according to BS4504/EN1092

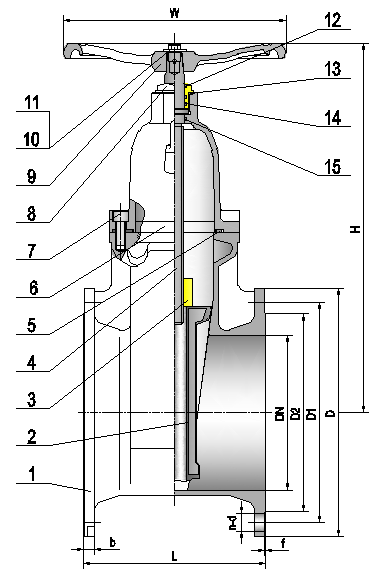

SPECIFICATION
|
No. |
Part Name |
Material |
|
|
1 |
Body |
EN-GJS-500-7 |
|
|
2 |
Rubber Disc |
EPDM/NBR+DI. |
|
|
3 |
Stem Nut |
ZCuAl10Fe3 |
|
|
4 |
Stem |
1Cr17Ni2 |
|
|
5 |
Bonnet Gasket |
EPDM/NBR |
|
|
6 |
Bonnet |
EN-GJS-500-7 |
|
|
7 |
Socket Cap Screw |
Carbon Steel |
|
|
8 |
Seal Block |
ZCuZn40Mn3Fe1 |
|
|
9 |
Handwheel |
EN-GJS-500-7 |
|
|
10 |
Nut |
Zinc-plated Carbon Steel |
|
|
11 |
Washer |
Zinc-plated Carbon Steel |
|
|
12 |
Dustproof Seal Ring |
EPDM/NBR |
|
|
13 |
O-ring |
EPDM/NBR |
|
|
14 |
O-ring |
EPDM/NBR |
|
|
15 |
O-ring |
EPDM/NBR |
Dimensions data(mm)
|
DN
|
L |
D |
b |
EN1092-2 PN10 |
EN1092-2 PN16 |
H |
W |
|||||
|
|
SABS665 |
SABS664 |
|
|
D1 |
D2 |
n-d |
D1 |
D2 |
n-d |
|
|
|
DN 50 |
178 |
216 |
165 |
19 |
125 |
99 |
4-19 |
125 |
99 |
4-19 |
250 |
180 |
|
DN 80 |
203 |
229 |
200 |
19 |
160 |
132 |
8-19 |
160 |
132 |
8-19 |
300 |
200 |
|
DN 100 |
229 |
254 |
220 |
19 |
180 |
156 |
8-19 |
180 |
156 |
8-19 |
350 |
200 |
|
DN 150 |
267 |
280 |
285 |
19 |
240 |
211 |
8-23 |
240 |
211 |
8-23 |
450 |
280 |
|
DN 200 |
292 |
317 |
340 |
20 |
295 |
266 |
8-23 |
295 |
266 |
12-23 |
550 |
320 |
|
DN 250 |
330 |
356 |
405 |
22 |
350 |
319 |
12-23 |
355 |
319 |
12-28 |
650 |
350 |
|
DN 300 |
356 |
380 |
460 |
24.5 |
400 |
370 |
12-23 |
410 |
370 |
12-28 |
710 |
380 |
|
DN 350 |
381 |
470 |
520 |
26.5 |
460 |
429 |
16-23 |
470 |
429 |
16-28 |
762 |
450 |
|
DN 400 |
406 |
470 |
580 |
28 |
515 |
480 |
16-28 |
525 |
480 |
16-31 |
836 |
450 |
|
DN 450 |
432 |
485 |
640 |
30 |
565 |
530 |
20-28 |
585 |
548 |
20-31 |
957 |
640 |
|
DN 500 |
457 |
510 |
715 |
31.5 |
620 |
582 |
20-28 |
650 |
609 |
20-34 |
1036 |
640 |
|
DN 600 |
508 |
600 |
840 |
36 |
725 |
682 |
20-31 |
770 |
720 |
20-37 |
1188 |
640 |
