Steel Flange & Pipe Flange Welding Neck Flange
Steel Flange
1.Types: Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint and Plate etc;
2.Standard:
(1) ANSI B16.5, A105 150LB / 300LB / 600LB / 900LB / 1500LB / 2500LB
(2) DIN 2573 PN6 / DIN 2576 PN10 / DIN2502 PN16 / DIN2503 P25-40 / DIN2566 PN16 / DIN2631-2635 RST37.2 OR C22.8
(3) JIS SS400 OR SF440 5K / 10K / 16K / 20K / 30K
(4) UNI 2276 / 2277 / 2278 / 6084 / 6089 / 6090 / 2544 / 2282 / 6091-6093
(5) EN1092 PN6 / PN10 / PN16 / PN25 / PN40 / TYPE1 TYPE2 TYPE 5 TYPE 12 TYPE 13
(6) BS4504 SANI1123 1000/3, 1600/3, 2500/3, T/D, T/E, T/F carbon steel flange
(7) AS2129 TABLE D / TABLE H / TABLE E carbon steel flange
(8) GOST 12820-80 / 12821-80 carbon steel flange
3.Wall Thickness: Sch10, Sch20 , Sch30, STD, Sch40, XS,Sch80, Sch100, Sch120, Sch140, XXS;
4.Pressure Rating: Class 150LBS, 300LBS, 600LBS, 900LBS, 1500LBS, 2000LBS, 3000LBS, 6000LBS, 9000 LBS;
5.Size: 1/2" - 24";
6.Surface treatment: Anti-rust oil, black / yellow / transparent / electric galvanized / hot galvanized.
Butt welding flange with neck refers to a flange with cone neck and butt welded with cylinder or pipeline. It is an integral flange. Due to the transition structure of cone neck and butt welding connection, the strength and stiffness of flange are strengthened, and the tightness is better than that of flat welded flange. The disadvantage is that it needs to be manufactured by forgings, which consumes a lot of materials and has a large manufacturing cost. Neck butt welding flange is suitable for occasions with high pressure, high temperature or high sealing requirements.
The steel pipe flange is a movable flange piece, which is generally matched on the water supply and drainage accessories. When the manufacturer leaves the factory, there is a flange at both ends of the expansion joint, which is directly connected with the pipeline and equipment in the project with bolts.
The purpose of using stainless steel flange is generally to save materials. Its structure is divided into two parts. One end of the pipe is connected with the pipe and the other end is made into butt welding ring. The flange plate is made of low-grade materials, while the pipe part is made of the same materials as the pipe, so as to save materials.
1. Cost savings. When the pipe material is special and expensive, the cost of welding flanges of the same material is high.
2. It is not convenient for welding or processing or requires high strength. Such as plastic pipe, FRP pipe and so on.
3. Convenient for construction. For example, it is not easy to align the corresponding flange bolt holes during connection, or prevent the flange bolt holes from changing in the future.

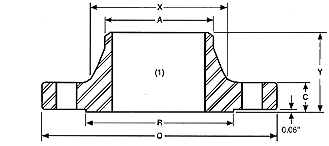

forged steel flange dimensions class150
| Nominal size | Outside diam. of flange | Thick. of flange | Diam. of raised face | Diam of hub at base | Diam. of hub at point of welding | Length thru hub | No. of holes | Diam. of holes | Diam. of bolts | Diam. of bolt circle | Approx. weight pounds Kg | |
| O | C | R | X | A | Y | |||||||
| in. | 1/2" | 3.5 | 0.44 | 1.38 | 1.19 | 0.84 | 1.88 | 4 | 0.62 | 1/2 | 2.38 | 2 |
| mm. | 88.9 | 11.2 | 35.1 | 30.2 | 21.3 | 47.8 | 15.7 | 12.7 | 60.5 | 1 | ||
| in. | 3/4" | 3.88 | 0.5 | 1.69 | 1.5 | 1.05 | 2.06 | 4 | 0.62 | 1/2 | 2.75 | 2 |
| mm. | 98.6 | 12.7 | 42.9 | 38.1 | 26.7 | 52.3 | 15.7 | 12.7 | 69.9 | 1 | ||
| in. | 1" | 4.25 | 0.56 | 2 | 1.94 | 1.32 | 2.19 | 4 | 0.62 | 1/2 | 3.12 | 3 |
| mm. | 108 | 14.2 | 50.8 | 49.3 | 33.5 | 55.6 | 15.7 | 12.7 | 79.2 | 1 | ||
| in. | 1 1/4" | 4.62 | 0.62 | 2.5 | 2.31 | 1.66 | 2.25 | 4 | 0.62 | 1/2 | 3.5 | 3 |
| mm. | 117.3 | 15.7 | 63.5 | 58.7 | 42.2 | 57.2 | 15.7 | 12.7 | 88.9 | 1 | ||
| in. | 1 1/2" | 5 | 0.69 | 2.88 | 2.56 | 1.9 | 2.44 | 4 | 0.62 | 1/2 | 3.88 | 4 |
| mm. | 127 | 17.5 | 73.2 | 65 | 48.3 | 62 | 15.7 | 12.7 | 98.6 | 2 | ||
| in. | 2" | 6 | 0.75 | 3.62 | 3.06 | 2.38 | 2.5 | 4 | 0.75 | 5/8 | 4.75 | 6 |
| mm. | 152.4 | 19.1 | 91.9 | 77.7 | 60.5 | 63.5 | 19.1 | 15.9 | 120.7 | 3 | ||
| in. | 2 1/2" | 7 | 0.88 | 4.12 | 3.56 | 2.88 | 2.75 | 4 | 0.75 | 5/8 | 5.5 | 8 |
| mm. | 177.8 | 22.4 | 104.6 | 90.4 | 73.2 | 69.9 | 19.1 | 15.9 | 139.7 | 4 | ||
| in. | 3" | 7.5 | 0.94 | 5 | 4.25 | 3.5 | 2.75 | 4 | 0.75 | 5/8 | 6 | 10 |
| mm. | 190.5 | 23.9 | 127 | 108 | 88.9 | 69.9 | 19.1 | 15.9 | 152.4 | 5 | ||
| in. | 3 1/2" | 8.5 | 0.94 | 5.5 | 4.81 | 4 | 2.81 | 8 | 0.75 | 5/8 | 7 | 12 |
| mm. | 215.9 | 23.9 | 139.7 | 122.2 | 101.6 | 71.4 | 19.1 | 15.9 | 177.8 | 5 | ||
| in. | 4" | 9 | 0.94 | 6.19 | 5.31 | 4.5 | 3 | 8 | 0.75 | 5/8 | 7.5 | 15 |
| mm. | 228.6 | 23.9 | 157.2 | 134.9 | 114.3 | 76.2 | 19.1 | 15.9 | 190.5 | 7 | ||
| in. | 5" | 10 | 0.94 | 7.31 | 6.44 | 5.56 | 3.5 | 8 | 0.88 | 3/4 | 8.5 | 19 |
| mm. | 254 | 23.9 | 185.7 | 163.6 | 141.2 | 88.9 | 22.4 | 19.1 | 215.9 | 9 | ||
| in. | 6" | 11 | 1 | 8.5 | 7.56 | 6.63 | 3.5 | 8 | 0.88 | 3/4 | 9.5 | 24 |
| mm. | 279.4 | 25.4 | 215.9 | 192 | 168.4 | 88.9 | 22.4 | 19.1 | 241.3 | 11 | ||
| in. | 8" | 13.5 | 1.12 | 10.62 | 9.69 | 8.63 | 4 | 8 | 0.88 | 3/4 | 11.75 | 39 |
| mm. | 342.9 | 28.4 | 269.7 | 246.1 | 219.2 | 101.6 | 22.4 | 19.1 | 298.5 | 18 | ||
| in. | 10" | 16 | 1.19 | 12.75 | 12 | 10.75 | 4 | 12 | 1 | 7/8 | 14.25 | 52 |
| mm. | 406.4 | 30.2 | 323.9 | 304.8 | 273.1 | 101.6 | 25.4 | 22.2 | 362 | 24 | ||
| in. | 12" | 19 | 1.25 | 15 | 14.38 | 12.75 | 4.5 | 12 | 1 | 7/8 | 17 | 80 |
| mm. | 482.6 | 31.8 | 381 | 365.3 | 323.9 | 114.3 | 25.4 | 22.2 | 431.8 | 36 | ||
| in. | 14" | 21 | 1.38 | 16.25 | 15.75 | 14 | 5 | 12 | 1.12 | 1 | 18.75 | 110 |
| mm. | 533.4 | 35.1 | 412.8 | 400.1 | 355.6 | 127 | 28.4 | 25.4 | 476.3 | 50 | ||
| in. | 16" | 23.5 | 1.44 | 18.5 | 18 | 16 | 5 | 16 | 1.12 | 1 | 21.25 | 140 |
| mm. | 596.9 | 36.6 | 469.9 | 457.2 | 406.4 | 127 | 28.4 | 25.4 | 539.8 | 64 | ||
| in. | 18" | 25 | 1.56 | 21 | 19.88 | 18 | 5.5 | 16 | 1.25 | 1 1/8 | 22.75 | 150 |
| mm. | 635 | 39.6 | 533.4 | 505 | 457.2 | 139.7 | 31.8 | 28.6 | 577.9 | 68 | ||
| in. | 20" | 27.5 | 1.69 | 23 | 22 | 20 | 5.69 | 20 | 1.25 | 1 1/8 | 25 | 180 |
| mm. | 698.5 | 42.9 | 584.2 | 558.8 | 508 | 144.5 | 31.8 | 28.6 | 635 | 82 | ||
| in. | 24" | 32 | 1.88 | 27.25 | 26.12 | 24 | 6 | 20 | 1.38 | 1 1/4 | 29.5 | 260 |
| mm. | 812.8 | 47.8 | 692.2 | 663.4 | 609.6 | 152.4 | 35.1 | 31.8 | 749.3 | 118 |
forged steel flange dimensions class300
| Nominal size | Outside diam. of flange | Thick. of flange | Diam. of raised face | Diam of hub at base | Diam. of hub at point of welding | Length thru hub | No. of holes | Diam. of holes | Diam. of bolts | Diam. of bolt circle | Approx. weight pounds Kg | |
| O | C | R | X | A | Y | |||||||
| in. | 1/2" | 3.75 | 0.56 | 1.38 | 1.5 | 0.84 | 2.06 | 4 | 0.62 | 1/2 | 2.62 | 2 |
| mm. | 95.3 | 14.2 | 35.1 | 38.1 | 21.3 | 52.3 | 15.7 | 12.7 | 66.5 | 1 | ||
| in. | 3/4" | 4.62 | 0.62 | 1.69 | 1.88 | 1.05 | 2.25 | 4 | 0.75 | 5/8 | 3.25 | 3 |
| mm. | 117.3 | 15.7 | 42.9 | 47.8 | 26.7 | 57.2 | 19.1 | 15.9 | 82.6 | 1 | ||
| in. | 1" | 4.88 | 0.69 | 2 | 2.12 | 1.32 | 2.44 | 4 | 0.75 | 5/8 | 3.5 | 4 |
| mm. | 124 | 17.5 | 50.8 | 53.8 | 33.5 | 62 | 19.1 | 15.9 | 88.9 | 2 | ||
| in. | 1 1/4" | 5.25 | 0.75 | 2.5 | 2.5 | 1.66 | 2.56 | 4 | 0.75 | 5/8 | 3.88 | 5 |
| mm. | 133.4 | 19.1 | 63.5 | 63.5 | 42.2 | 65 | 19.1 | 15.9 | 98.6 | 2 | ||
| in. | 1 1/2" | 6.12 | 0.81 | 2.88 | 2.75 | 1.9 | 2.69 | 4 | 0.88 | 3/4 | 4.5 | 7 |
| mm. | 155.4 | 20.6 | 73.2 | 69.9 | 48.3 | 68.3 | 22.4 | 19.1 | 114.3 | 3 | ||
| in. | 2" | 6.5 | 0.88 | 3.62 | 3.31 | 2.38 | 2.75 | 8 | 0.75 | 5/8 | 5 | 9 |
| mm. | 165.1 | 22.4 | 91.9 | 84.1 | 60.5 | 69.9 | 19.1 | 15.9 | 127 | 4 | ||
| in. | 2 1/2" | 7.5 | 1 | 4.12 | 3.94 | 2.88 | 3 | 8 | 0.88 | 3/4 | 5.88 | 12 |
| mm. | 190.5 | 25.4 | 104.6 | 100.1 | 73.2 | 76.2 | 22.4 | 19.1 | 149.4 | 5 | ||
| in. | 3" | 8.25 | 1.12 | 5 | 4.62 | 3.5 | 3.12 | 8 | 0.88 | 3/4 | 6.62 | 15 |
| mm. | 209.6 | 28.4 | 127 | 117.3 | 88.9 | 79.2 | 22.4 | 19.1 | 168.1 | 7 | ||
| in. | 3 1/2" | 9 | 1.19 | 5.5 | 5.25 | 4 | 3.19 | 8 | 0.88 | 3/4 | 7.25 | 18 |
| mm. | 228.6 | 30.2 | 139.7 | 133.4 | 101.6 | 81 | 22.4 | 19.1 | 184.2 | 8 | ||
| in. | 4" | 10 | 1.25 | 6.19 | 5.75 | 4.5 | 3.38 | 8 | 0.88 | 3/4 | 7.88 | 25 |
| mm. | 254 | 31.8 | 157.2 | 146.1 | 114.3 | 85.9 | 22.4 | 19.1 | 200.2 | 11 | ||
| in. | 5" | 11 | 1.38 | 7.31 | 7 | 5.56 | 3.88 | 8 | 0.88 | 3/4 | 9.25 | 32 |
| mm. | 279.4 | 35.1 | 185.7 | 177.8 | 141.2 | 98.6 | 22.4 | 19.1 | 235 | 15 | ||
| in. | 6" | 12.5 | 1.44 | 8.5 | 8.12 | 6.63 | 3.88 | 12 | 0.88 | 3/4 | 10.62 | 42 |
| mm. | 317.5 | 36.6 | 215.9 | 206.2 | 168.4 | 98.6 | 22.4 | 19.1 | 269.7 | 19 | ||
| in. | 8" | 15 | 1.62 | 10.62 | 10.25 | 8.63 | 4.38 | 12 | 1 | 7/8 | 13 | 67 |
| mm. | 381 | 41.1 | 269.7 | 260.4 | 219.2 | 111.3 | 25.4 | 22.2 | 330.2 | 30 | ||
| in. | 10" | 17.5 | 1.88 | 12.75 | 12.62 | 10.75 | 4.62 | 16 | 1.12 | 1 | 15.25 | 91 |
| mm. | 444.5 | 47.8 | 323.9 | 320.5 | 273.1 | 117.3 | 28.4 | 25.4 | 387.4 | 41 | ||
| in. | 12" | 20.5 | 2 | 15 | 14.75 | 12.75 | 5.12 | 16 | 1.25 | 1 1/8 | 17.75 | 140 |
| mm. | 520.7 | 50.8 | 381 | 374.7 | 323.9 | 130 | 31.8 | 28.6 | 450.9 | 64 | ||
| in. | 14" | 23 | 2.12 | 16.25 | 16.75 | 14 | 5.62 | 20 | 1.25 | 1 1/8 | 20.25 | 180 |
| mm. | 584.2 | 53.8 | 412.8 | 425.5 | 355.6 | 142.7 | 31.8 | 28.6 | 514.4 | 82 | ||
| in. | 16" | 25.5 | 2.25 | 18.5 | 19 | 16 | 5.75 | 20 | 1.38 | 1 1/4 | 22.5 | 250 |
| mm. | 647.7 | 57.2 | 469.9 | 482.6 | 406.4 | 146.1 | 35.1 | 31.8 | 571.5 | 113 | ||
| in. | 18" | 28 | 2.38 | 21 | 21 | 18 | 6.25 | 24 | 1.38 | 1 1/4 | 24.75 | 320 |
| mm. | 711.2 | 60.5 | 533.4 | 533.4 | 457.2 | 158.8 | 35.1 | 31.8 | 628.7 | 145 | ||
| in. | 20" | 30.5 | 2.5 | 23 | 23.12 | 20 | 6.38 | 24 | 1.38 | 1 1/4 | 27 | 400 |
| mm. | 774.7 | 63.5 | 584.2 | 587.2 | 508 | 162.1 | 35.1 | 31.8 | 685.8 | 181 | ||
| in. | 24" | 36 | 2.75 | 27.25 | 27.62 | 24 | 6.62 | 24 | 1.62 | 1 1/2 | 32 | 580 |
| mm. | 914.4 | 69.9 | 692.2 | 701.5 | 609.6 | 168.1 | 41.1 | 38.1 | 812.8 | 263 | ||

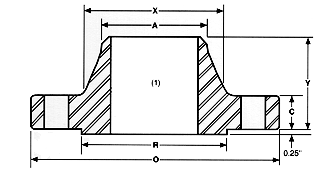

forged steel flange dimensions class600
| Nominal size | Outside diam. of flange | Thick. of flange | Diam. of raised face | Diam of hub at base | Diam. of hub at point of welding | Length thru hub | No. of holes | Diam. of holes | Diam. of bolts | Diam. of bolt circle | Approx. weight pounds Kg | |
| O | C | R | X | A | Y | |||||||
| in. | 1/2" | 3.75 | 0.56 | 1.38 | 1.5 | 0.84 | 2.06 | 4 | 0.62 | 1/2 | 2.62 | 2 |
| mm. | 95.3 | 14.2 | 35.1 | 38.1 | 21.3 | 52.3 | 15.7 | 12.7 | 66.5 | 1 | ||
| in. | 3/4" | 4.62 | 0.62 | 1.69 | 1.88 | 1.05 | 2.25 | 4 | 0.75 | 5/8 | 3.25 | 4 |
| mm. | 117.3 | 15.7 | 42.9 | 47.8 | 26.7 | 57.2 | 19.1 | 15.9 | 82.6 | 2 | ||
| in. | 1" | 4.88 | 0.69 | 2 | 2.12 | 1.32 | 2.44 | 4 | 0.75 | 5/8 | 3.5 | 4 |
| mm. | 124 | 17.5 | 50.8 | 53.8 | 33.5 | 62 | 19.1 | 15.9 | 88.9 | 2 | ||
| in. | 1 1/4" | 5.25 | 0.81 | 2.5 | 2.5 | 1.66 | 2.62 | 4 | 0.75 | 5/8 | 3.88 | 6 |
| mm. | 133.4 | 20.6 | 63.5 | 63.5 | 42.2 | 66.5 | 19.1 | 15.9 | 98.6 | 3 | ||
| in. | 1 1/2" | 6.12 | 0.88 | 2.88 | 2.75 | 1.9 | 2.75 | 4 | 0.88 | 3/4 | 4.5 | 8 |
| mm. | 155.4 | 22.4 | 73.2 | 69.9 | 48.3 | 69.9 | 22.4 | 19.1 | 114.3 | 4 | ||
| in. | 2" | 6.5 | 1 | 3.62 | 3.31 | 2.38 | 2.88 | 8 | 0.75 | 5/8 | 5 | 12 |
| mm. | 165.1 | 25.4 | 91.9 | 84.1 | 60.5 | 73.2 | 19.1 | 15.9 | 127 | 5 | ||
| in. | 2 1/2" | 7.5 | 1.12 | 4.12 | 3.94 | 2.88 | 3.12 | 8 | 0.88 | 3/4 | 5.88 | 18 |
| mm. | 190.5 | 28.4 | 104.6 | 100.1 | 73.2 | 79.2 | 22.4 | 19.1 | 149.4 | 8 | ||
| in. | 3" | 8.25 | 1.25 | 5 | 4.62 | 3.5 | 3.25 | 8 | 0.88 | 3/4 | 6.62 | 23 |
| mm. | 209.6 | 31.8 | 127 | 117.3 | 88.9 | 82.6 | 22.4 | 19.1 | 168.1 | 10 | ||
| in. | 3 1/2" | 9 | 1.38 | 5.5 | 5.25 | 4 | 3.38 | 8 | 1 | 7/8 | 7.25 | 26 |
| mm. | 228.6 | 35.1 | 139.7 | 133.4 | 101.6 | 85.9 | 25.4 | 22.2 | 184.2 | 12 | ||
| in. | 4" | 10.75 | 1.5 | 6.19 | 6 | 4.5 | 4 | 8 | 1 | 7/8 | 8.5 | 42 |
| mm. | 273.1 | 38.1 | 157.2 | 152.4 | 114.3 | 101.6 | 25.4 | 22.2 | 215.9 | 19 | ||
| in. | 5" | 13 | 1.75 | 7.31 | 7.44 | 5.56 | 4.5 | 8 | 1.12 | 1 | 10.5 | 68 |
| mm. | 330.2 | 44.5 | 185.7 | 189 | 141.2 | 114.3 | 28.4 | 25.4 | 266.7 | 31 | ||
| in. | 6" | 14 | 1.88 | 8.5 | 8.75 | 6.63 | 4.62 | 12 | 1.12 | 1 | 11.5 | 81 |
| mm. | 355.6 | 47.8 | 215.9 | 222.3 | 168.4 | 117.3 | 28.4 | 25.4 | 292.1 | 37 | ||
| in. | 8" | 16.5 | 2.19 | 10.62 | 10.75 | 8.63 | 5.25 | 12 | 1.25 | 1 1/8 | 13.75 | 120 |
| mm. | 419.1 | 55.6 | 269.7 | 273.1 | 219.2 | 133.4 | 31.8 | 28.6 | 349.3 | 54 | ||
| in. | 10" | 20 | 2.5 | 12.75 | 13.5 | 10.75 | 6 | 16 | 1.38 | 1 1/4 | 17 | 190 |
| mm. | 508 | 63.5 | 323.9 | 342.9 | 273.1 | 152.4 | 35.1 | 31.8 | 431.8 | 86 | ||
| in. | 12" | 22 | 2.62 | 15 | 15.75 | 12.75 | 6.12 | 20 | 1.38 | 1 1/4 | 19.25 | 225 |
| mm. | 558.8 | 66.5 | 381 | 400.1 | 323.9 | 155.4 | 35.1 | 31.8 | 489 | 102 | ||
| in. | 14" | 23.75 | 2.75 | 16.25 | 17 | 14 | 6.5 | 20 | 1.5 | 1 3/4 | 20.75 | 280 |
| mm. | 603.3 | 69.9 | 412.8 | 431.8 | 355.6 | 165.1 | 38.1 | 34.9 | 527.1 | 127 | ||
| in. | 16" | 27 | 3 | 18.5 | 19.5 | 16 | 7 | 20 | 1.62 | 1 1/2 | 23.75 | 390 |
| mm. | 685.8 | 76.2 | 469.9 | 495.3 | 406.4 | 177.8 | 41.1 | 38.1 | 603.3 | 177 | ||
| in. | 18" | 29.25 | 3.25 | 21 | 21.5 | 18 | 7.25 | 20 | 1.75 | 1 5/8 | 25.75 | 475 |
| mm. | 743 | 82.6 | 533.4 | 546.1 | 457.2 | 184.2 | 44.5 | 41.3 | 654.1 | 215 | ||
| in. | 20" | 32 | 3.5 | 23 | 24 | 20 | 7.5 | 24 | 1.75 | 1 5/8 | 28.5 | 590 |
| mm. | 812.8 | 88.9 | 584.2 | 609.6 | 508 | 190.5 | 44.5 | 41.3 | 723.9 | 268 | ||
| in. | 24" | 37 | 4 | 27.25 | 28.25 | 24 | 8 | 24 | 2 | 1 7/8 | 33 | 830 |
| mm. | 939.8 | 101.6 | 692.2 | 717.6 | 609.6 | 203.2 | 50.8 | 47.6 | 838.2 | 376 | ||
