Electric Power Fitting Yoke Plates
Yoke Plates
|

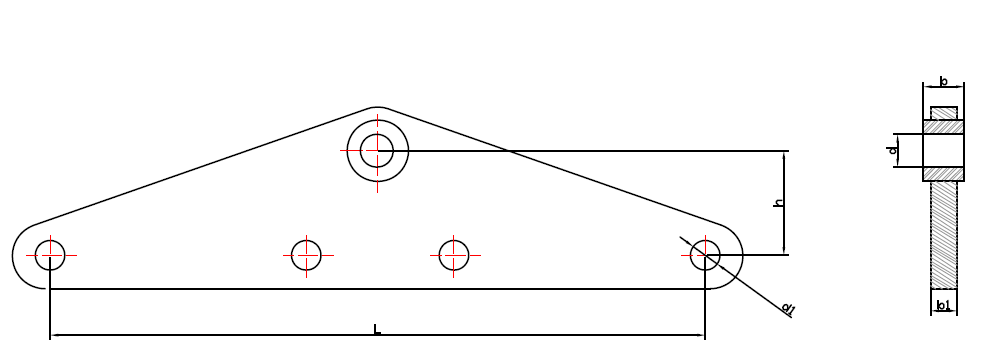

TYPE |
b (MM) |
b1(MM) |
d(MM) |
d1(MM) |
h(MM) |
L(MM) |
Weight(kg) |
|
L-1040 |
16 |
16 |
20 |
18 |
70 |
400.0 |
4.5 |
|
L-1050 |
16 |
16 |
20 |
18 |
100 |
500.0 |
7.1 |
|
L-1060 |
16 |
16 |
20 |
18 |
130 |
600 |
9.8 |
|
L-1240 |
16 |
16 |
24.0 |
18 |
70 |
400 |
4.7 |
|
L-1640 |
18 |
18 |
26 |
20 |
100 |
400 |
5.9 |
|
L-2140 |
26 |
16 |
30 |
20 |
100 |
400.0 |
7 |
|
L-2150 |
26 |
16 |
30 |
26 |
130 |
500.0 |
11.4 |
|
L-2540 |
30 |
18 |
33 |
24 |
110 |
400 |
9.90 |
|
L-3040 |
32 |
18 |
39 |
26 |
110 |
400 |
10.00 |
